Products Home > Products > Onshore Drilling Rig

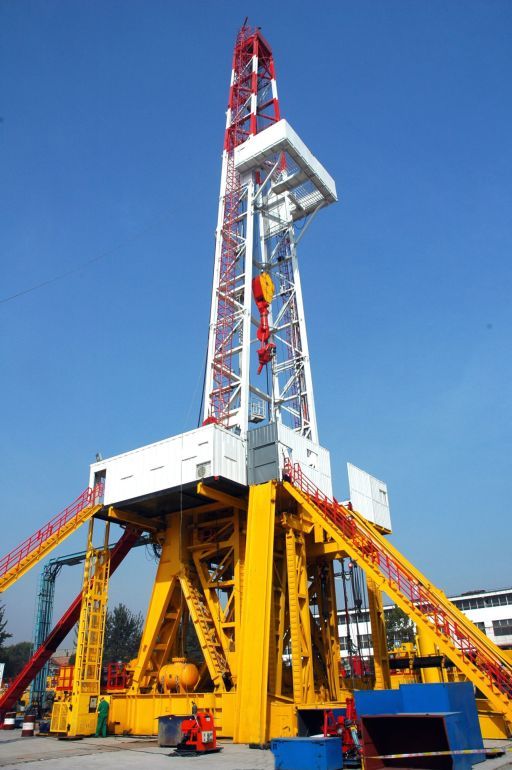

ZJ70DB Drilling depth (m):15000-23000;5″DP 13000-20000;Max hook load (lbs):1000000;Hook speed (ft/s)0-3.9;Mast height (ft):148;Mast type: K type;Height of the drill floor (ft): 29.53、34.45; Substructure type:Swing-up;Engine:CAT3512;Engine power (No×hp):4×1676;hydraulic transmission;  JC70DB Drawworks with 2146 horse power; Disc main brake; FDWS70 Auxiliary brake; Main wireline diameter 11/2"; YC450, DG450 hook block; Swivel:SL450; Rotary table model:ZP375; 3 set mud pump, totally 3540 horse power; Working pressure of the hydraulic system:2030/2320psi; Working pressure of air system:143psi;Weight:880000lbs.
880000

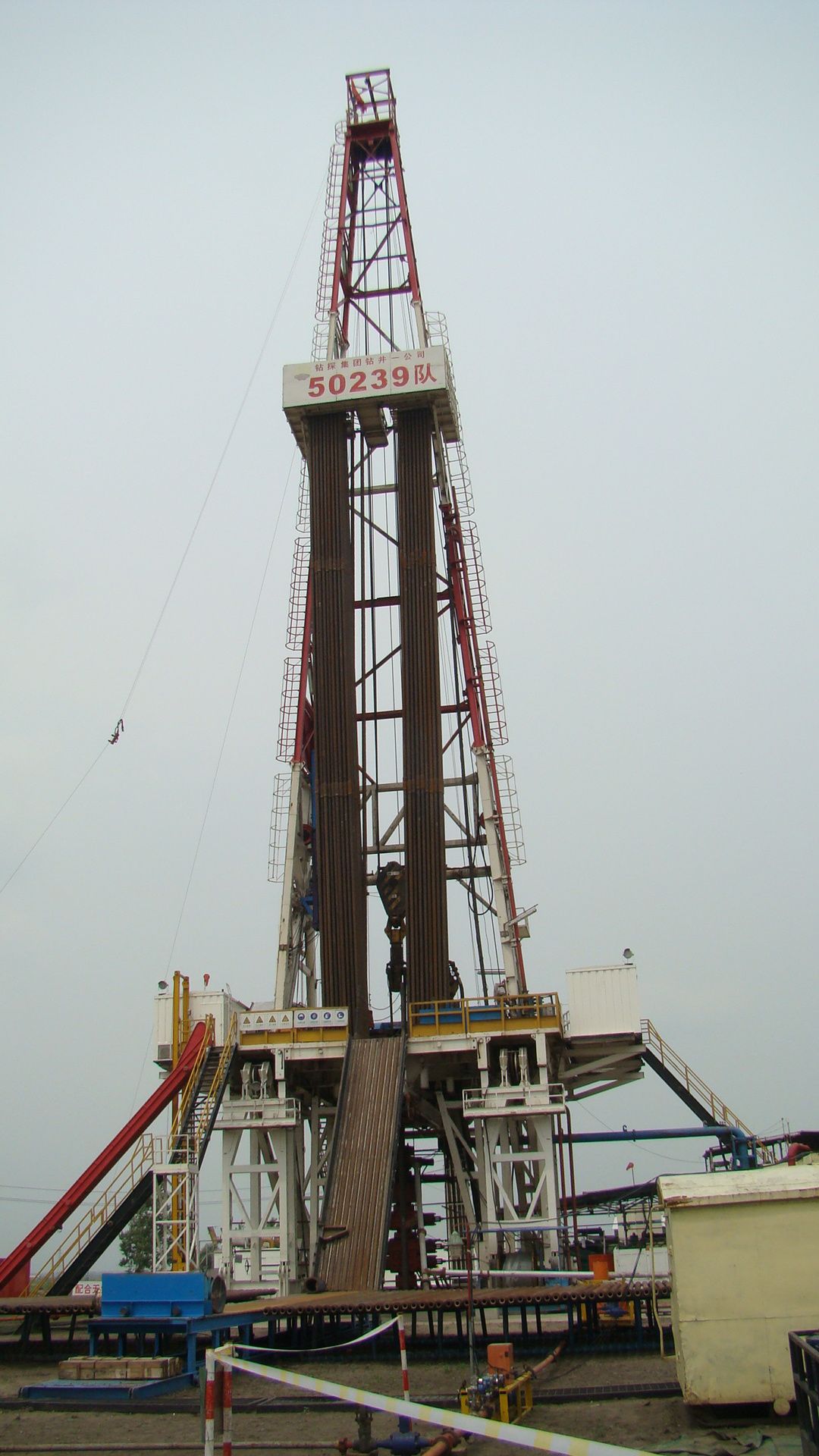

ZJ50DB Drilling depth using 4-1/2"DP:11000-16000ft;5″DP:13000-20000ft;Max hook load:70000lbs;Max hook speed:3.9ft/s;Mast height (ft):141ft,148ft;Mast type: K type;Height of the drill floor (ft): 24.61;29.53;Substructure type:Swing-up/sling-shot;Engine:CAT3512generator set;Engine power:3×1676;VFD
Transmission box,model:zj50;6x7 traveling system; Drawworks model:JC50DB with 1609 horse power; Disc main brake, ENERGY consumption braking;13/8" wireline; YC315 or DG315 hook block; Swivel:SL450; Rotary table model:ZP375; 2 set mud pump, totally 1920 horse power; Working pressure of the hydraulic system:2030/2320psi; Working pressure of air system:143psi;Weight:770000lbs.
ZJ40DB Drilling depth using 4-1/2"DP:8200-13000ft;5″DP:6600-10000ft; Max hook load:50000lbs;Max hook speed:3.9ft/s;Mast height (ft):141ft,141ft;Mast type: K type;Height of the drill floor (ft): 24.61;Substructure type:Swing-up/sling-shot;Engine:CAT3512B generator set;Engine power:3888horse power;VFD Transmission box,model:zj40;5x6 traveling system; Drawworks model:JC40DB with 1073 horse power; Disc main brake, ENERGY consumption auxiliary brake;11/4" wireline; YC225 or DG225 hook block; Swivel:SL225; Rotary table model:ZP275; 2 set mud pump, totally 1920 horse power; Working pressure of the hydraulic system:2030/2320psi; Working pressure of air system:143psi;Weight:660000lbs.
ZJ10DB Drilling depth using 4-1/2"DP:1600-3200ft;5″DP:1600-2600ft;Max hook load:150000lbs;Max hook speed:3.6ft/s;Mast height 95ft;Mast type: Erective section; Height of the drill floor:8.86ft; substructure type: Folding; Engine:AC-VF Motor;Engine power:308 horse power; Electrical & Mechanical mix type transmission,model:zj10; 4x6 traveling system; Drawworks model:JC10DB with 268 horse power; Band main brake, 224WCB auxiliary brake; 7/8" wireline; YG70 hook block; Swivel:SL110; Rotary table model:ZP175; 1 set mud pump, totally 496 horse power; Working pressure of the hydraulic system:2030/2320psi; Working pressure of air system:143psi;Weight:176000lbs.

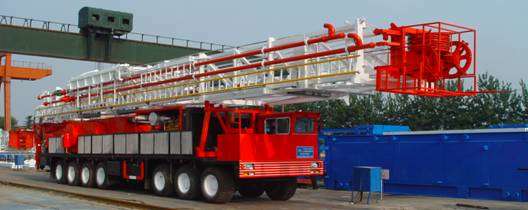

Structure type double drum, truck-mounted and self-propelled rig.
Nominal drilling depth: 10000 ft (41/2″DP); Max. hook load 400000lbs; Engine power 2×475hp(two sets ); Model: CAT3408(two sets ); Drive way: Hydraulic +mechanical; Transmission model: Allison 5961(two sets )Drawworks gear NO.5F+1R; Mast height: 118/125(ft); Traveling system: 4×5/5×6; Wireline dia.  Φ11/4"; Hook block speed:0.66~4.59(ft/s); Substructure height: 19.685ft; Opening dia. of rotary table: 27.5"; Chassis drive way: 14×8; Main unit weight when moving:170000lbs; Overall dimension when moving     73×10×15 (ft)

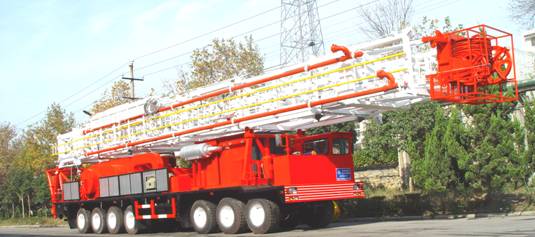

ZJ40/2250CZ Self-propelled drilling rig. Drilling depth (4-1/2″ DP):13000ft; Workover depth (3- 1/2″DP):23000ft;Max. hook load: 500000lbs(5×6); Rated power for the drawworks 735(100)HP/kW(hp); 10 wireline; Pump power(Unit)no less 735(100)hP/kW(hp); Opening dia of rotary table:700mm(271/2");Substructure height: 18ft; Mast height 118/125(ft).
