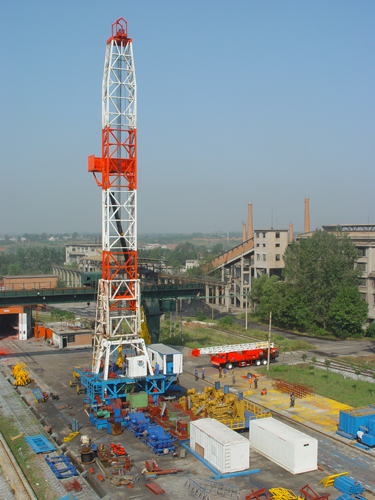

7000 meter land driiling rig
Details
Model
 ZJ70DB

Drilling depth (m)
 15000-23000

5″DP
 13000-20000

Max hook load (lbs)
 1000000

Hook speed (ft/s)
 0-3.9

Mast height (ft)
 148

Mast type
 K type

Height of the drill floor (ft)
 29.53、34.45

Substructure type
 Swing-up

Engine type
 CAT3512
Bgenerator set

Engine power (No×hp)
 4×1676

Transmission type
 hydraulic+
mechanical
 VFD
 VFD
 hydraulic+
mechanical
 VFD

Model of the transmission box
 ZJ70

Traveling system
 6×7

Drawworks Model
 JC70DB

Drawworks power (hp)
 2146

Main brake
 Disc brake

Auxiliary brake
 FDWS70
 energy-
consumption
braking

Main wireline diameter (in)
 11/2

Model of the hook block
 YC450、DG450

Model of the swivel
 SL450

Model of rotary table
 ZP375

Mud pump power (hp/set)
 1180/3

Working pressure of the hydraulic system (psi)
 2030/2320

Working pressure of air system (psi)
 143

Weight (lbs)
 880000
